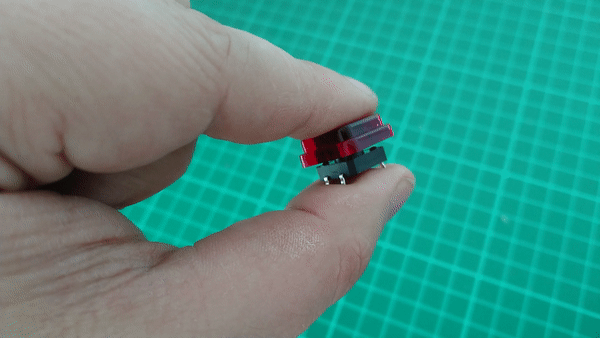

I want to build a nice integrated keypad for a project, so I'm testing a few methods to create buttons. This one seems to have potential. Two laser cut parts, one is the number keypad and the other one is glued under this one. A small mechanical button and the thing is ready.
It’s Alive – The Video

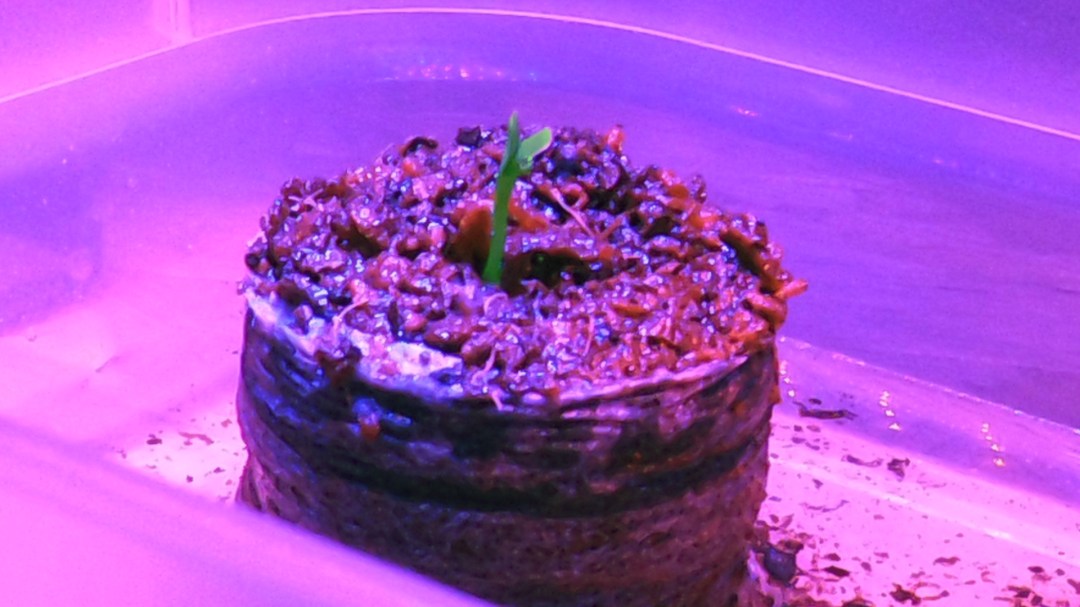

My plant light works. The first seed starts to grow. I've done a timelaps video over the day, with one picture every 60 seconds. Playback rate is 25 frames per second. I've slightly zoomed in and I layed a green filter over the video to remove the maximum of the pink light. https://youtu.be/iFm6XJoxbwE https://youtu.be/qQiarYeKXeg
Movable Action Camera Holder

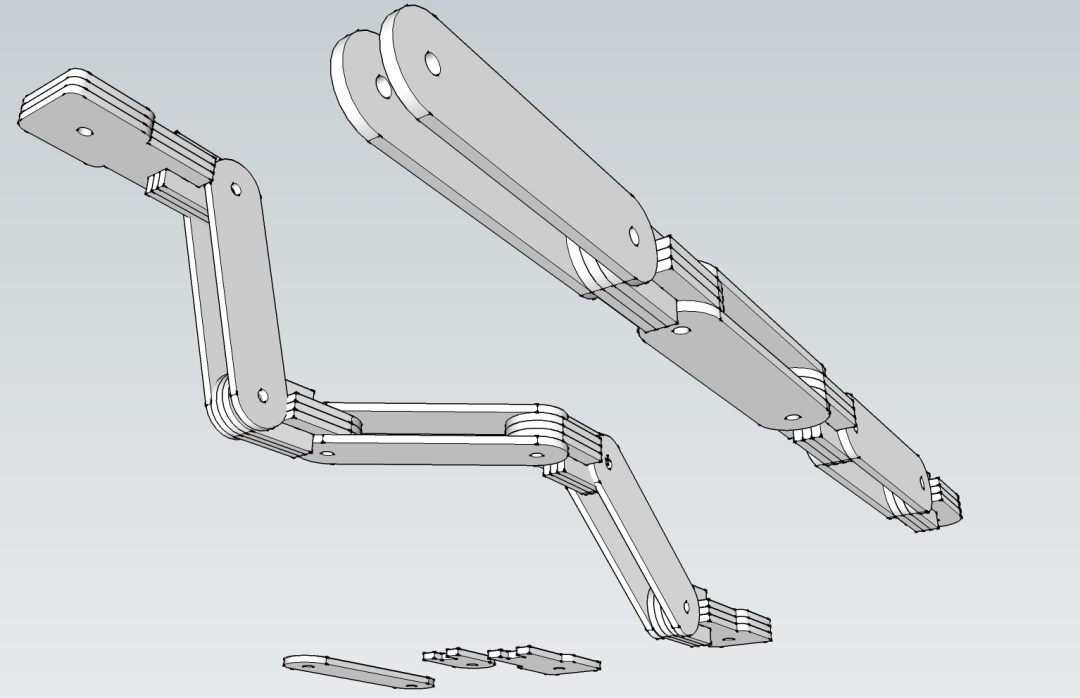

I need a Mount for my Action Cam. So I designed a simple cad in Sketchup 8. The 2d graphic has been drawn in qcad Power on the laser cutter, et voila Gluing the parts together Finishing the Camera Mount And the result
Live Test Of My Led Grow Light

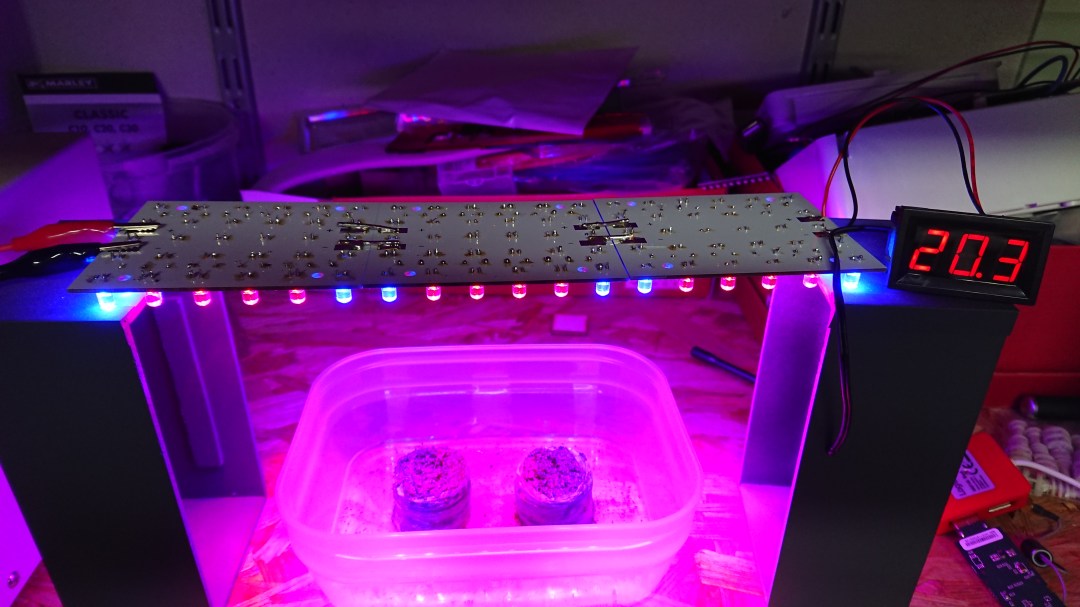

This will be my first attempt to check if my grow light works. I use coir pellets witch provide a lot of substrate and as seed I use salad burnet herb. I took these because of there size. A small plastic Tupperware will work as a peel for my vegetables. With the addition of water, … Continue reading Live Test Of My Led Grow Light
Stacking works

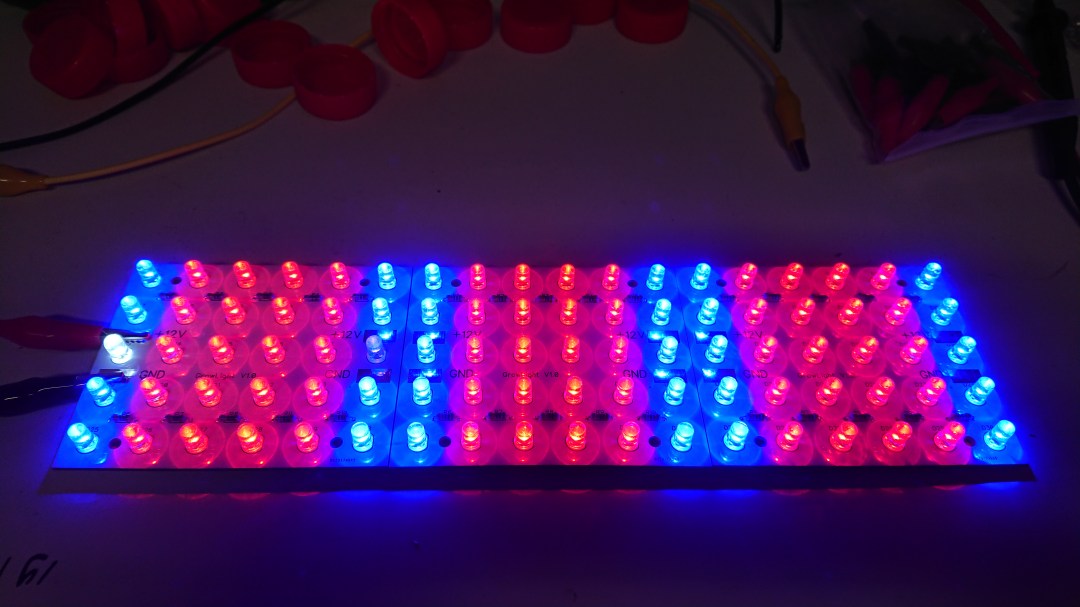

My idea to stack the led modules works. On the one on the left, I replaced two blue led's with a white and an UV one.
First Led Plant Growing Light Ready

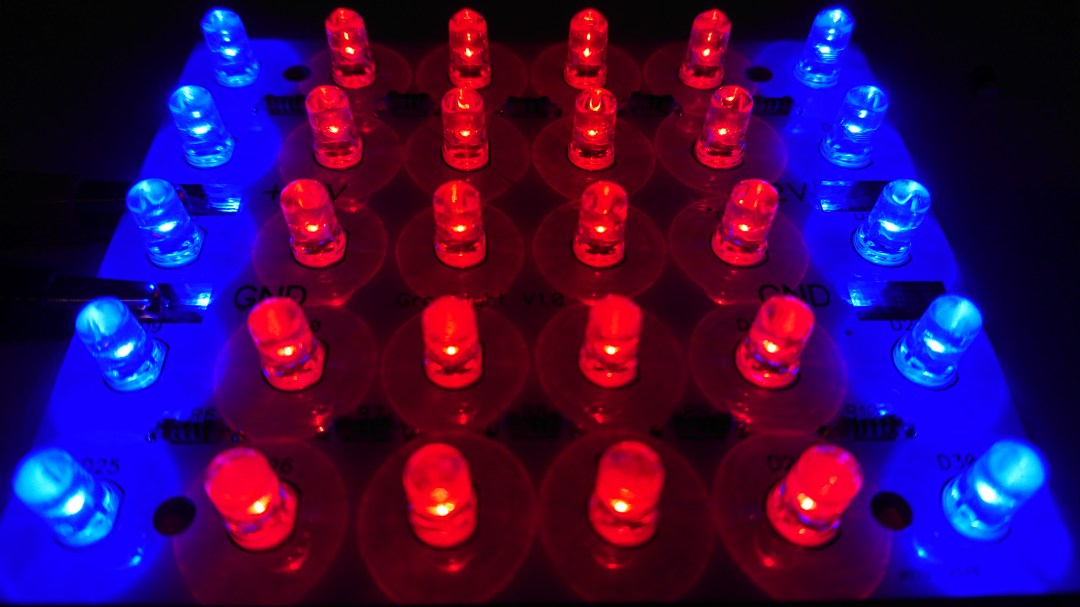

I just finished the first of the twenty grow lights. Works great and as I calculated, it takes at 12V DC 200mA.
The LED’s are here, let’s cut a Mask

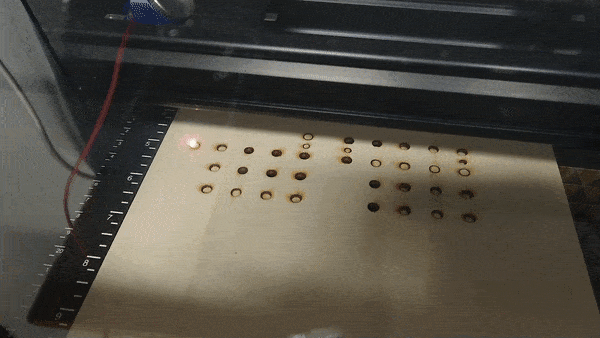

So now that the Led's are here. With the laser cut mask I can place them all together with the resistors on the PCB and solder them.
