Now that the shift register works, I connect a real time clock module to the Arduino. After a few fails, the RTC finally works.

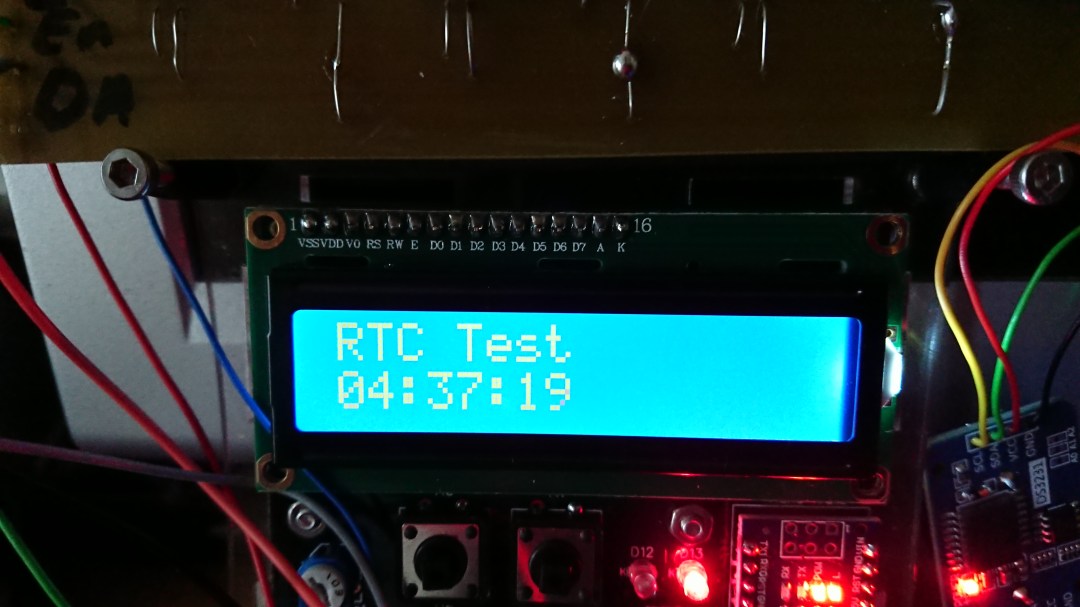

I changed the clock output to a 12 hour clock, an put the output on an LCD.


In the next step,I used the 32bit shift register to make a binary watch. I need these tests for my word clock, I am curently working on.
