Just ordered new PCB’s for an idea. Start to build it on perfboard, but it was boring, so I decided to design PCB’s. This time I tried jlcpcb.com. Let’s check the quality.

Normally they should reach my destination next week an I will post the result here.

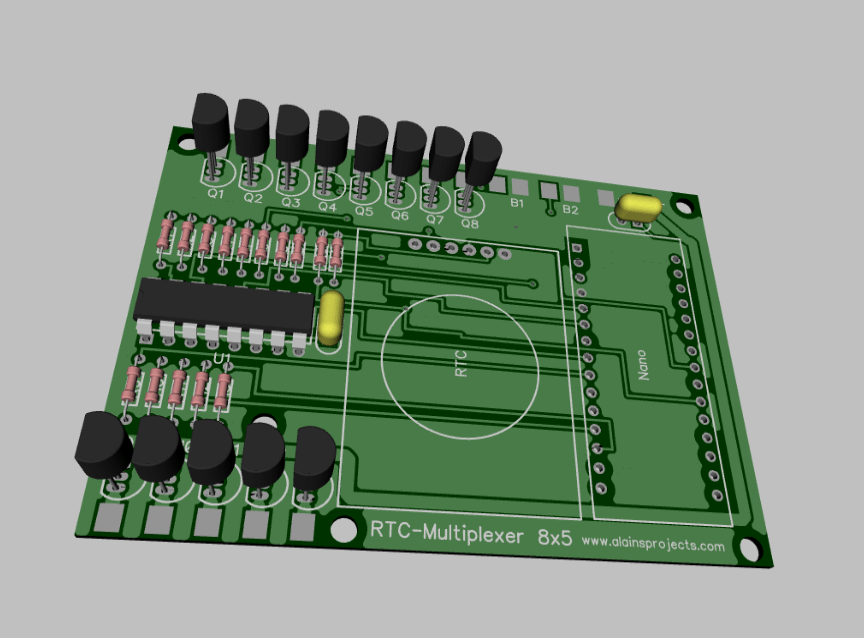

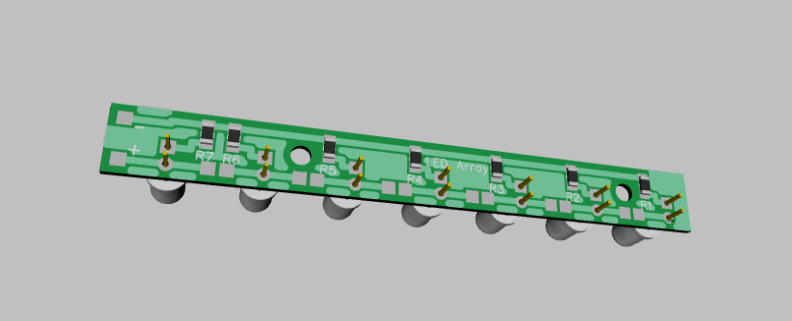

multiplex1ledmod02

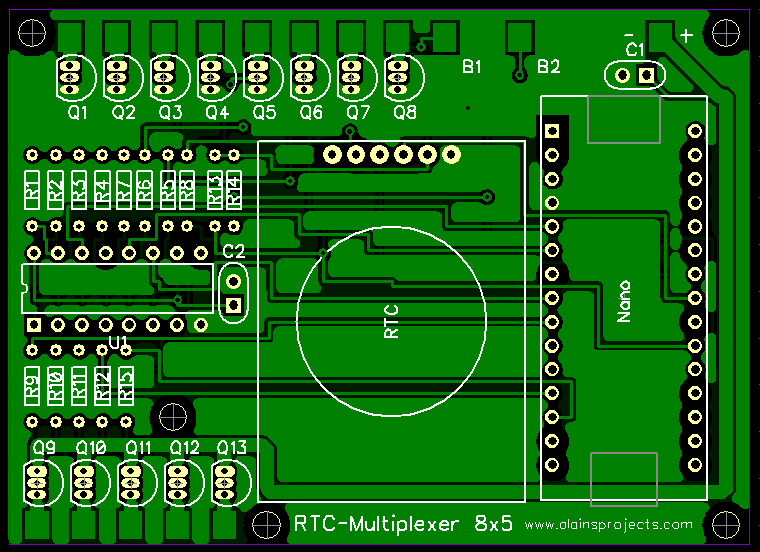

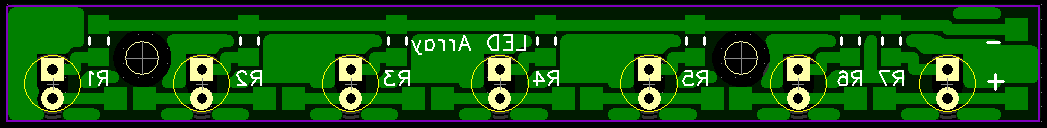

pcb-multiplexpcb-led
