First parts for this little Led light. It’s for a children’s room, so it will be batteries driven and the power on/off will be a capacitive touch switch. No moving parts and the small parts are behind a 3 mm acrylic window

The basic Idea

model003

And here the first parts, to see if everything fits.



Seems to work. Now I need to correct a few things an build the base.

The electronic inside the Base

The TTP223 capacitive  switch. Point B, will be bridged, so the module works in toggle mode.

DSC_1785

And here is the circuit diagram



schema

First test of the circuit
on-off

Building the cave

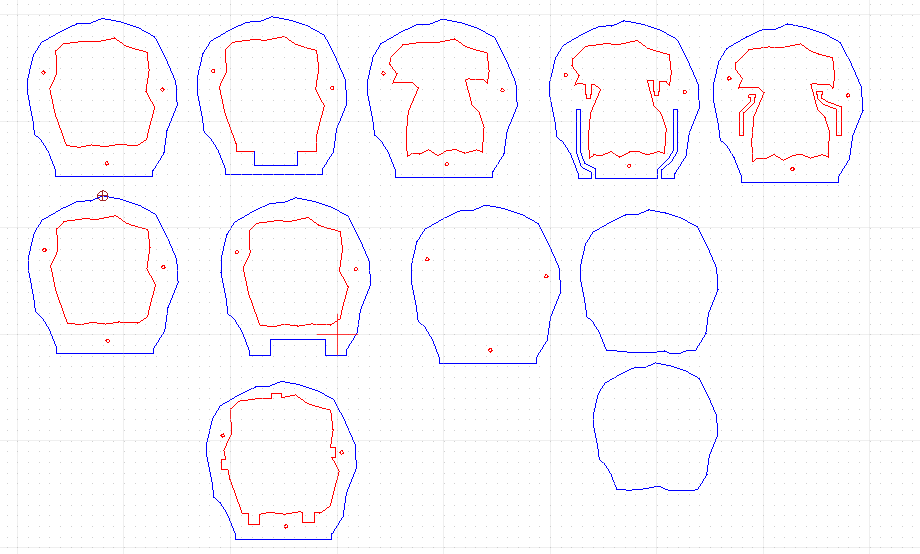

All the parts are designed in Qcad. Then glued together and painted. The LED’s are inside the wooden construction.

qcad-parts

_20190414_193748

First test run, with all the LED’s installed

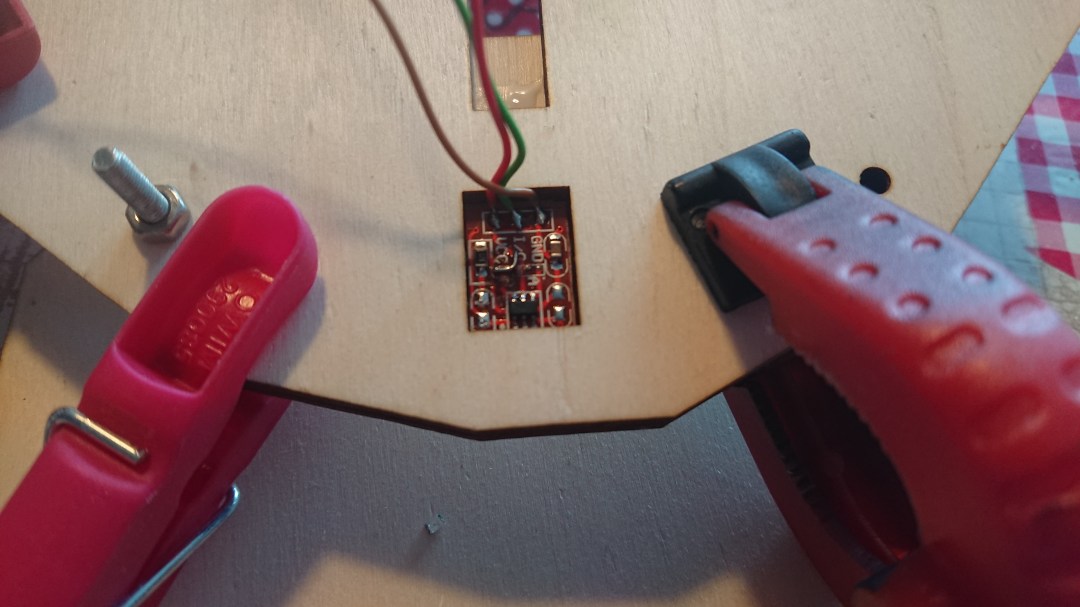

The Base with the touch switch

DSC_1834

The wiring and the battery

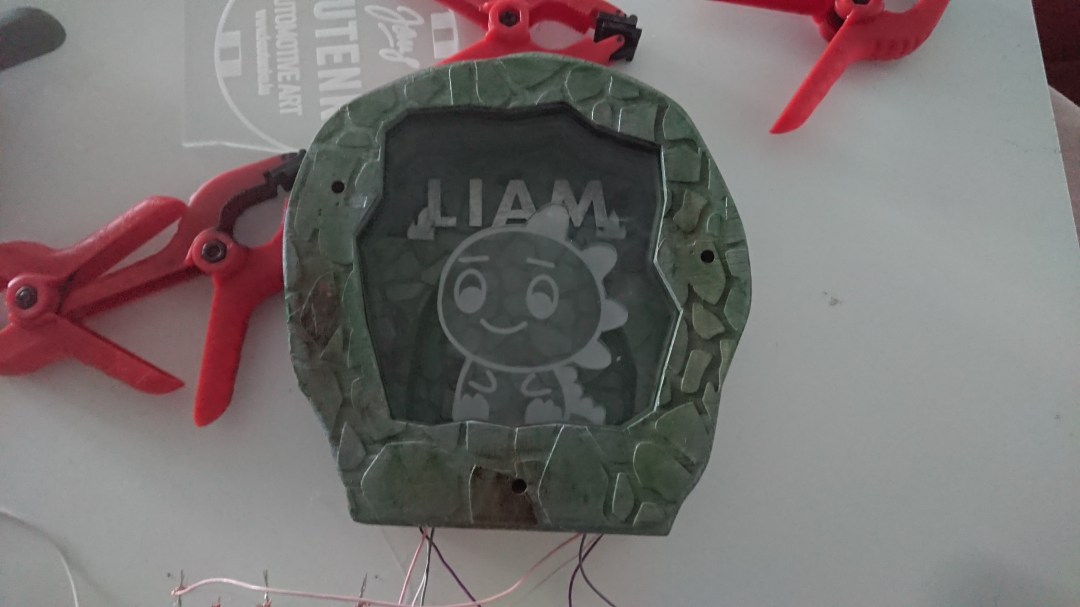

The final result
