Today I tried to build a light badge. I use 3mm mdf wood, a CR2032 and a rgb LED slow color changer.

It turned out not to bad 🙂

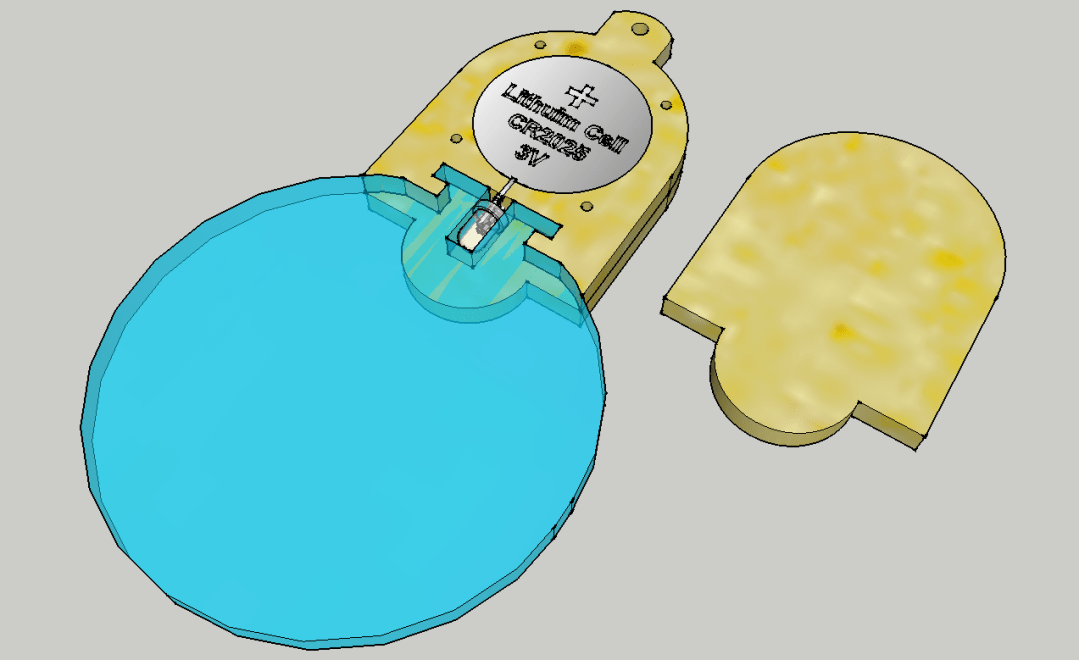

Like always, the 3D design in Sketchup 8.0, to check if it could fit together

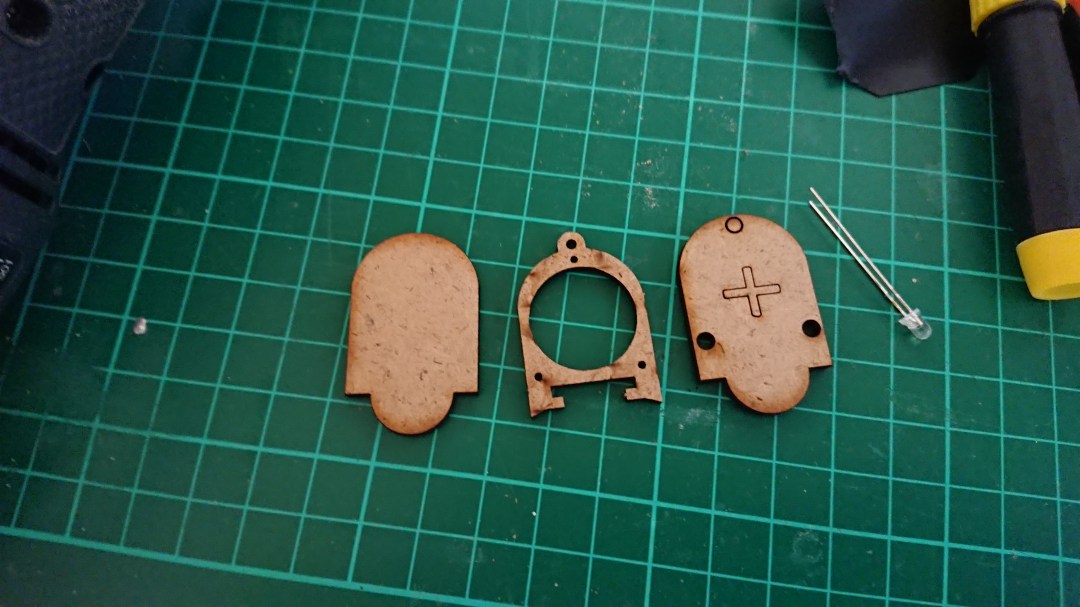

To the laser

DSC_3310

The middle part is glued to the back. The front of the 3mm LED was sanded off so that the light becomes diffuser. Insert a CR2032 between the LED wires (check polarity) an it blinks.

Screwed the 3 part with 3 M1,2 screws together. It should work for 4-6 hours.

And the finished Light Badge
